BHF-B Automatic Slitting Machine

Name:BHF-B Automatic Slitting Machine
Model:BHF-B
Machine speed:200m/min
Slitting width:50—1300mm
Max unwinding diameter:Φ600mm
Max rewinding diameter:Φ400mm


DESCRIPTION

Automatic Packaging Film Slitting Machine of  BHF-B series is slitting equipment designed and produced for factories of   BOPPCPPPET and aluminized film and other materials  and so on.
The machine sets machine, electricity and gas in integration and is made from the elaborate design, fine processing, precise assemble. It is very ideal slitting equipment with high slitting speed, neat cutting film edge, smooth running, easy operation and other advantages.



TECHNIQUE PARAMETER

1.Applicable Materials:   BOPPCPPPET and aluminized film…etc

2. Maximum unwinding diameter:     Φ600mm
3. Maximum rewinding diameter:     Φ400mm
4. Slitting width:                                50—1300mm

5.Slitting thickness:                            0.012~0.15mm
6. Slitting accuracy:                            ±0.3mm
7.Mechanical speed:            200m/mindifferent material different speed
8. Rectify precision                        ≤ ±0.5mm
9. Total power                                ≈5Kw
10.Paper core inner diameter           Φ76mm(3”)
11. Supply Voltage:                       AC 380V (three-phase and five wires)

12. Dimension:  L2600*W1500*H1400mm

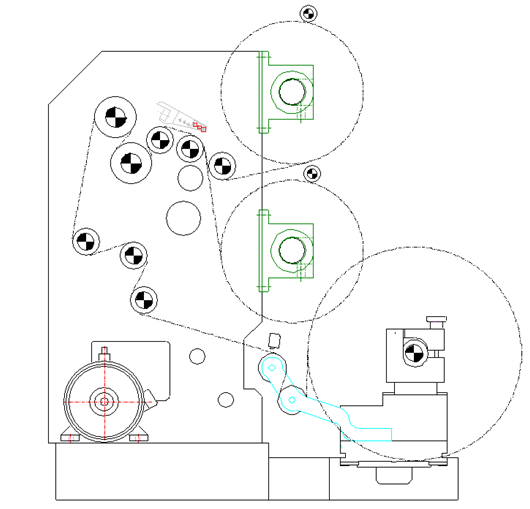

LAYOUT
