All-In-One Web Guiding Control System

Name:All-In-One Web Guiding Control System
Type:PG
Roller diameter:50mm / custom made
Roller length:200mm / custom made
Roller width:230mm / custom make
Max. speed:40mm/s
Environment temperature:-10~60°C, below RH90
Max.Tension (N):300-500
Web Guide range (degree°):AC220V /80W

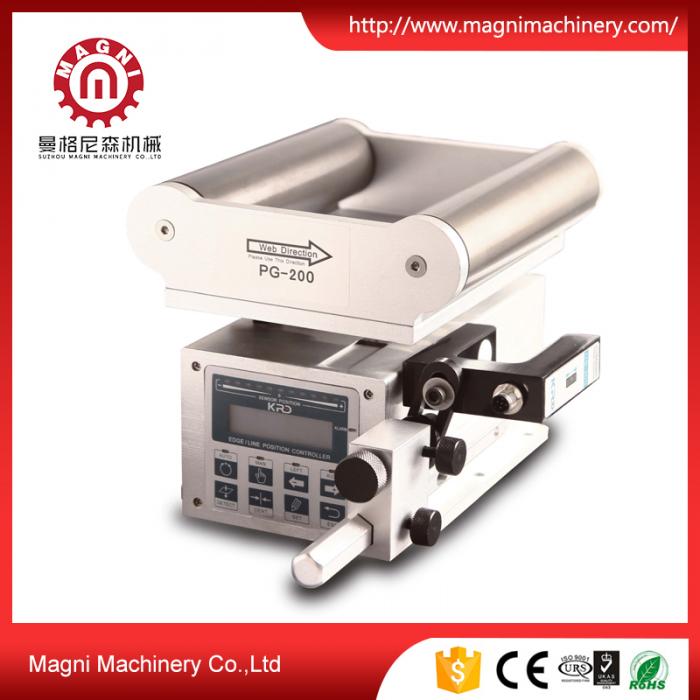

All-In-One Web Guiding Control system


PG Series Introduction

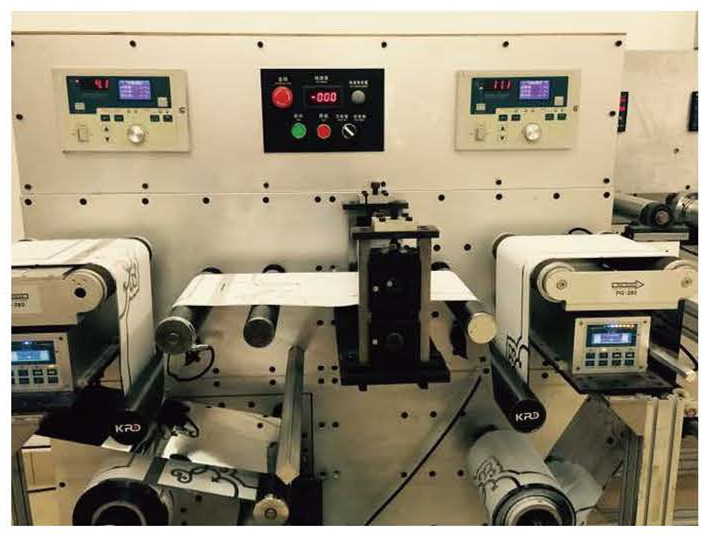

The Newly developed all-in-one web guide controller is applied to accurate correct the narrow wide range of materials. Especially for label printing, packaging and non-woven industries.

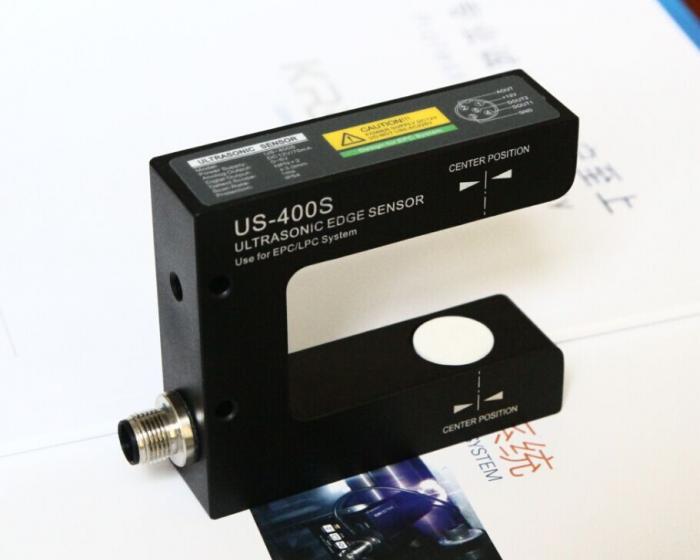

All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.



All-In-One Web Guiding Control system Features

1. Brushless DC servo motor driving, maintenance free;

2. Accuracy ball screw bar and accuracy positioning;

3. With large guiding travel;

4. Roller length and width can be custom made;

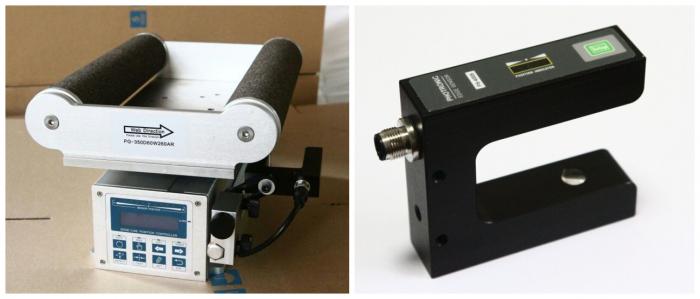

5. Roller surface treatment can be anodized, rubber and cork leather;

6. Manual or air fixture of the cutting station is optional.

All-In-One Web Guiding Control system Data

Voltage

AC220V /80W

Roller diameter

50mm / custom made

Roller length

200mm / custom made

Roller width

230mm / custom make

Max. speed

40mm/s

Environment temperature

-10~60°C, below RH90%


All-In-One Web Guiding Control System Technical Data

Model

Roller Length

L (mm)

Roller Dia. D (mm)

Roller Width C  (mm)

Slide Block Height

B (mm)

Base Length

Y (mm)

Web Guide range (degree°)

Max.Tension (N)

PG-200A

200

50

230

25

260

±17

300

PG-250A

250

50

230

25

260

±17

300

PG-300A

300

60

260

25

310

±17

300

PG-350A

350

60

260

25

360

±17

300

PG-400A

400

60

310

35

410

±17

500

PG-450A

450

60

310

35

460

±17

500

PG-500A

500

60

310

35

510

±17

500

PG-600A

600

60

310

35

610

±17

500
