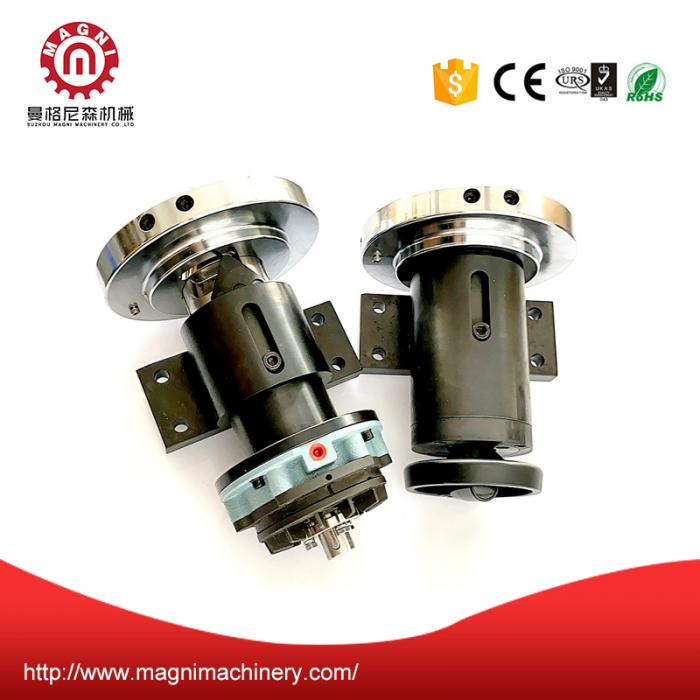

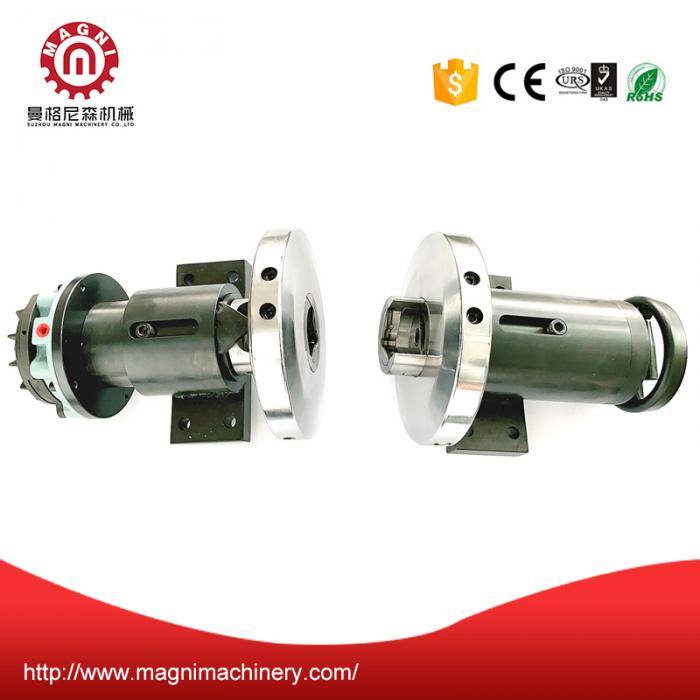

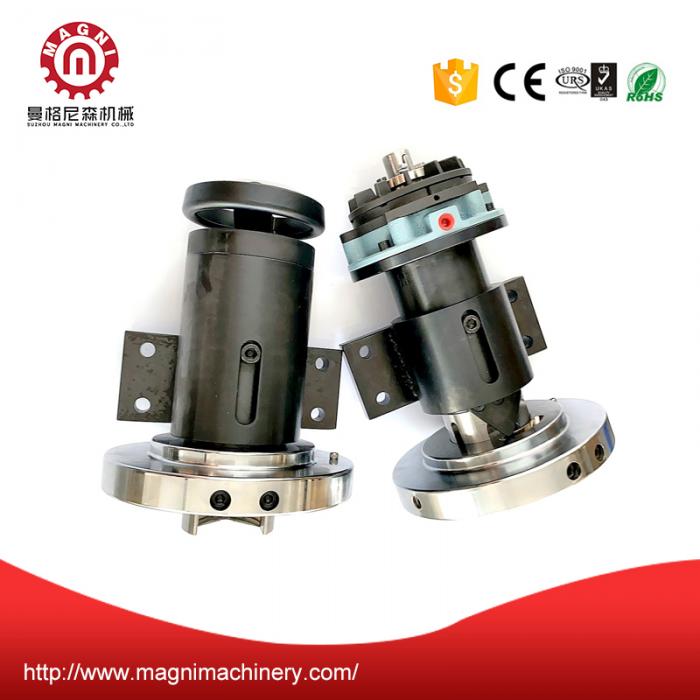

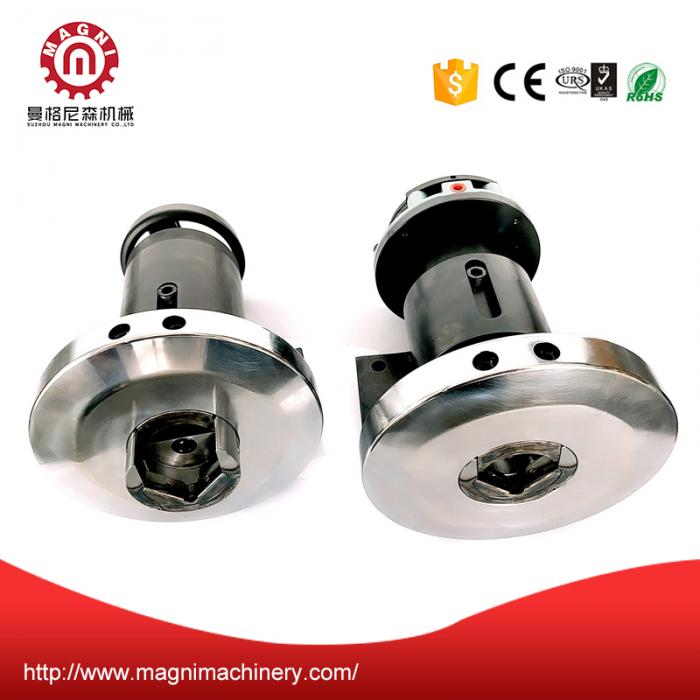

35 Sliding Open Safety chuck
| Name: | 35 Sliding Open Safety chuck |
| 型号Model: | 35,50 |
| 梁最大荷重量Max loading: | 1560Kg/3000 |
| 承受最大转矩 Max torque[kg/m(N/m)]: | 100(1000)/130(1300) |
| 卷轴轴端允许尺寸Square sizemm: | 口30-Φ42/口35-Φ50/ 口40-Φ55 |
滑动平推式安全夹头Sliding Open（Horizontal Pushing） Safety chuck
基座式Base Mounted Type
特性 Features
允许卷轴在机器运转过程进行轴向调整。调整可以通过手轮或者自动机构进行。轴向定位装置确保卷轴安全，准确地传送转矩。
Sliding safety chuck allows reel for axial adjustment when the machine on the running. Adjustment can be carried out by handwheel or automatic mechanism. Axial positioning device to ensure the safety of the reel, accurate transmission torque.
It is a quick
coupling used in shafted center wind and center unwind applications.

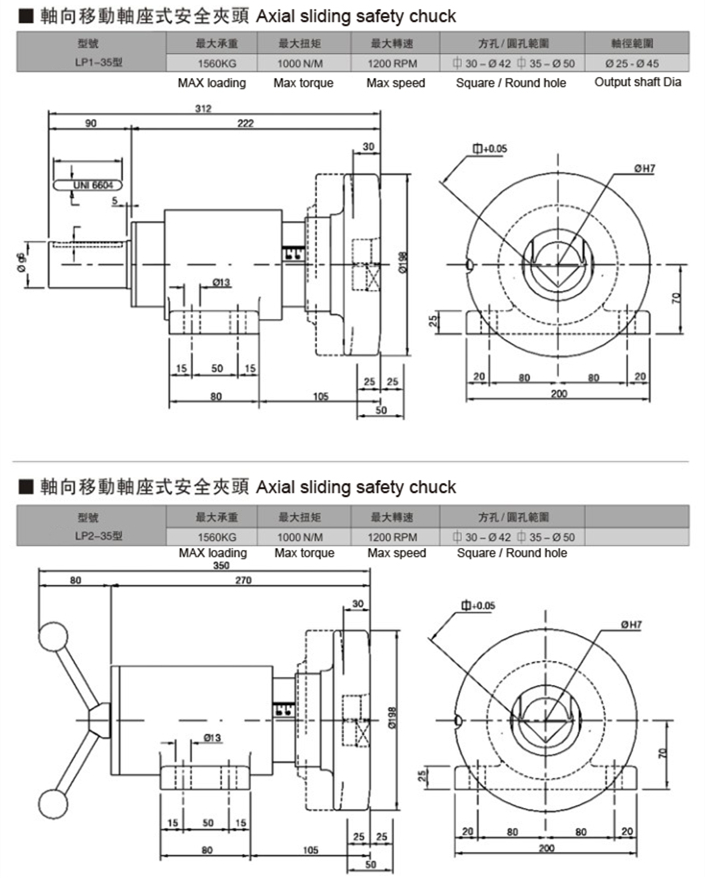

LP型轴座型滑动平推安全卡盘
LP型轴座型滑动平推安全卡盘
型号 |
Model |
35 |
50 |
梁最大荷重量kg |
Max loading |
1560 |
3000 |
承受最大转矩kg/m(N/m) |
Max torque |
100(1000) |
130(1300) |
卷轴轴端允许尺寸mm |
Circular/Square size |
口30-Φ42/口35-Φ50 |
口40-Φ55 |
